Serial Tap + Personal license for IO Ninja

Serial Tap +  Personal license for IO Ninja
Our Price:  £210.00(Exc. 20% VAT)(£252.00 Inc. VAT)

Part Number:  03315
Brand:  TIBBO



No stock

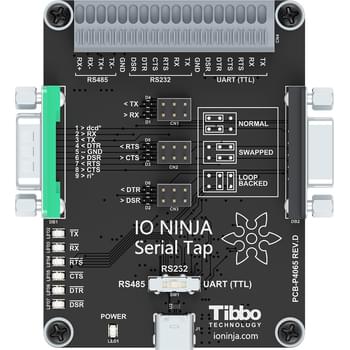

Serial Tap is an affordable sniffer for monitoring RS-232, RS-485, and TTL-level UART communications. This device works in tandem with the Serial Tap plugin.

This sniffer device must be used with the Serial Tap Plugin.

Key Features

  • Three operating modes: RS232, RS485, and TTL-level UART
  • Quick-release terminal block facilitates convenient wiring
  • Monitoring of TX, RX, RTS, CTS, DTR, and DSR lines
  • Onboard LEDs for line status indication
  • "Wedge" monitoring of RS232 communications:
    • DB9 connectors for placing the Tap "between" RS232 devices
    • Jumpers for swapping and loopbacking RS232 signals within TX/RX, RTS/CTS, and DTR/DSR signal pairs
    • Bi-color LEDs for distinguishing between positive, negative, and zero voltage levels on RS232 lines
  • USB 2.0 interface to a PC running IO Ninja software

Hardware Specifications

  • USB 2.0 interface, full-speed (12MHz), USB-C connector
  • Maximum baudrates:
    • RS232 mode: up to 1Mb/sec
    • RS485 mode: up to 3Mb/sec
    • TTL-level UART mode: up to 3Mb/sec
  • Supported TTL logic levels: from 3.3V to 5V
  • Mechanical dimensions: 82 x 74 x 30 mm
  • USB-powered, no additional external power necessary
  • Supplied with a USB-C cable and two DB9 gender changers
